In the realm of industrial manufacturing, the demand for precision and versatility in cutting complex shapes has been on a steady rise. As a supplier of large plane laser cutting machines, I am often asked the question: Can a large plane laser cutting machine cut complex shapes? This blog post aims to delve into this query, exploring the capabilities of these machines and their role in modern manufacturing.
Understanding Large Plane Laser Cutting Machines
Before we address the question of cutting complex shapes, let's first understand what a large plane laser cutting machine is. A Large Plane Laser Cutting Machine is a powerful tool designed to cut through various materials with high precision. It uses a high - intensity laser beam to melt, burn, or vaporize the material along a predefined path.
These machines are characterized by their large working area, which allows for the processing of large - scale workpieces. They are commonly used in industries such as automotive, aerospace, shipbuilding, and metal fabrication, where large and often complex parts need to be cut.
The Technology Behind Laser Cutting
Laser cutting technology is based on the principle of focusing a laser beam onto the surface of the material to be cut. The intense heat generated by the laser beam causes the material to melt, vaporize, or blow away, leaving a clean and precise cut. The path of the laser beam is controlled by a computer - numerical - control (CNC) system, which follows a pre - programmed design.
There are different types of lasers used in large plane laser cutting machines, including CO2 lasers, fiber lasers, and Nd:YAG lasers. Each type has its own advantages and is suitable for different materials and applications. For example, CO2 lasers are well - suited for cutting non - metallic materials such as wood, acrylic, and plastics, while fiber lasers are more efficient for cutting metals.
Capabilities for Cutting Complex Shapes
The answer to the question "Can a large plane laser cutting machine cut complex shapes?" is a resounding yes. These machines are highly capable of cutting intricate and complex shapes for several reasons.
Precision and Accuracy
One of the key advantages of laser cutting is its high precision and accuracy. The CNC system can control the movement of the laser beam with extreme precision, allowing for cuts as small as a few thousandths of an inch. This level of precision enables the machine to cut complex shapes with sharp corners, curves, and fine details. For example, in the aerospace industry, large plane laser cutting machines can cut complex turbine blade shapes with tight tolerances, ensuring optimal performance.
Flexibility in Design
The CNC programming of large plane laser cutting machines offers great flexibility in design. Designers can create complex 2D or 3D models using computer - aided design (CAD) software and then convert these models into cutting instructions for the laser cutting machine. This means that almost any shape that can be designed on a computer can be cut by the machine. Whether it's a custom - designed logo, a complex architectural element, or a part with irregular contours, the machine can handle it.
High - Speed Cutting
Large plane laser cutting machines are capable of high - speed cutting, which is essential when cutting complex shapes. The laser beam can move quickly along the cutting path, reducing production time. This is particularly important in industries where large volumes of parts need to be produced. For example, in the automotive industry, large plane laser cutting machines can cut multiple complex body panels in a short period, improving overall production efficiency.
Material Compatibility
These machines can cut a wide range of materials, including metals (such as steel, aluminum, and copper), non - metals (such as wood, plastic, and composites), and even some ceramics. This material compatibility allows for the cutting of complex shapes in different types of materials, making the large plane laser cutting machine a versatile tool in various industries.
Examples of Complex Shapes Cut by Large Plane Laser Cutting Machines
To better illustrate the capabilities of large plane laser cutting machines in cutting complex shapes, let's look at some real - world examples.
Architectural Elements
In the construction industry, large plane laser cutting machines are used to create complex architectural elements such as decorative facades, grilles, and balustrades. These elements often feature intricate patterns and curves that would be difficult or impossible to achieve using traditional cutting methods. The laser cutting machine can cut these shapes with high precision, enhancing the aesthetic appeal of the building.
Medical Devices
In the medical field, large plane laser cutting machines are used to manufacture complex medical devices such as stents and surgical instruments. These devices require precise cuts and fine details to ensure proper functionality and patient safety. The high precision of laser cutting allows for the production of these complex shapes with the required accuracy.
Art and Design
Artists and designers also take advantage of large plane laser cutting machines to create unique and complex artworks. They can cut intricate patterns in materials such as wood, metal, and acrylic, bringing their creative visions to life.
Advantages Over Traditional Cutting Methods
When compared to traditional cutting methods such as sawing, shearing, and punching, large plane laser cutting machines offer several advantages for cutting complex shapes.
Reduced Material Waste
Laser cutting produces less material waste because the laser beam is very narrow, resulting in a small kerf (the width of the cut). This is especially important when working with expensive materials. For example, in the jewelry industry, where precious metals are used, laser cutting can minimize material waste and reduce costs.
No Tool Wear
Unlike traditional cutting tools, the laser beam does not wear out during the cutting process. This means that the machine can maintain its cutting precision over a long period, even when cutting complex shapes repeatedly. There is no need to replace worn - out tools, which reduces downtime and maintenance costs.
Smooth and Clean Cuts
Laser cutting produces smooth and clean cuts, eliminating the need for secondary finishing operations in many cases. The edges of the cut are often free of burrs and rough spots, which is important for parts that require a high - quality surface finish.
Limitations and Considerations
While large plane laser cutting machines are highly capable of cutting complex shapes, there are some limitations and considerations to keep in mind.
Material Thickness
The thickness of the material can affect the machine's ability to cut complex shapes. As the material thickness increases, the cutting speed may decrease, and the quality of the cut may be affected. In some cases, very thick materials may require multiple passes of the laser beam to achieve a complete cut.
Reflective Materials
Reflective materials such as copper and aluminum can be more challenging to cut because they reflect a significant portion of the laser beam. Special techniques and adjustments may be required to ensure a successful cut.
Initial Investment and Operating Costs
Large plane laser cutting machines are a significant investment, and the operating costs, including energy consumption and maintenance, can be relatively high. However, for industries that require the cutting of large and complex parts, the benefits often outweigh the costs.
Conclusion
In conclusion, large plane laser cutting machines are highly capable of cutting complex shapes. Their precision, flexibility in design, high - speed cutting, and material compatibility make them an ideal choice for industries that require the production of large and intricate parts. Whether it's in the aerospace, automotive, or art industries, these machines play a crucial role in modern manufacturing.

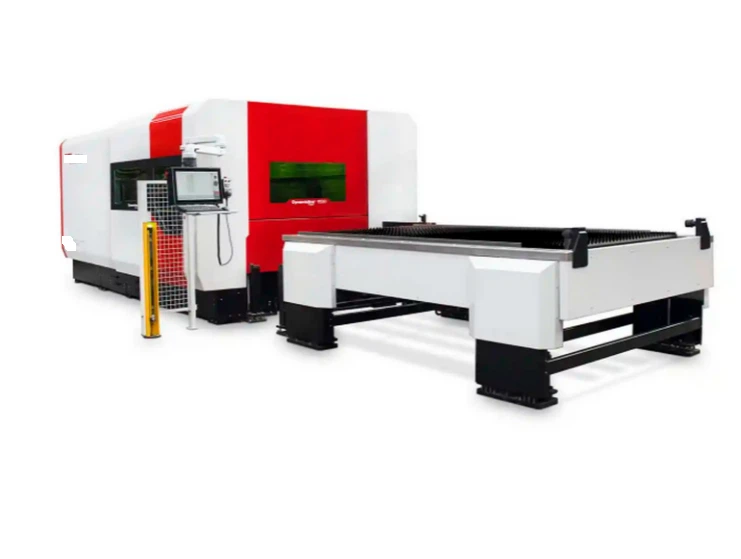

If you are in need of a large plane laser cutting machine for your manufacturing needs, we are here to help. Our Planar Laser Cutting Machine and Fully Automatic Cutting Machine offer the latest technology and features to meet your requirements. Contact us to discuss your specific needs and explore how our machines can enhance your production capabilities.
